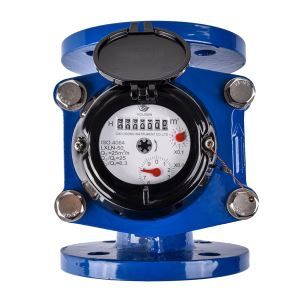

Woltman Magnetic Driven Flow Meters Supplier

Woltman Magnetic Driven Flow Meters


Features :

  • Large flow capacity and small pressure lose.
  • High quality material applied to guarantee its function efficient and reliable.
  • Magnet-drive, dry dial, protected by the cover, forever clean and legible dial for reading.
  • Register may be rotated through 360o.
  • Removable mechanism is easy to replace or fix and not required detaching the body from the pipeline.
  • Pulse emitter can be installed to this type for remote reading(option).

Specifications

Size DN50~DN300 (2 Inch ~ 12 Inch)
Type Dry Dial, Detachable, Horizontal
Standard ISO4064(R50/R63/R80/R100)
Function Measuring the volume of cold or hot water passing through the pipeline.


Line size & Flow range

Line Size MM 50 65 80 100 125 150 200 250 300
inches 2´´ 2.1/2´´ 3´´ 4´´ 5´´ 6´´ 8´´ 10´´ 12´´
Metro logical R(Q3/Q1≤100)        Q2/Q1≤(1.6,2.5,4,6.3)
Flow range Q3 M3/h 25 40 63 100 160 250 400 630 1000

Details

Maximum permissible error
Between Q1and Q2 (excluded)
±5%
Maximum permissible error
between Q2(included)and
±2% with water temperature>30o
Q4 ±3% with water temperature>30o

Technical Specification

Temperature  class Cold water:0o~40   Hot water:40o~90o
Nominal  pressure Bar 43389 43389 43389 43389
Min reading m3 0.001 0.001 0.001 0.001
Max reading m3 9999999 9999999 9999999 9999999
Weight kg 43385 43448 13.6 15
Pulse options l/imp. -328437 -328437 -328437 -328437


  • Removable Horizontal Woltman Magnetic Driven Flow Meter

  • Dry Dial Rotary Woltman Magnetic Driven Flow Meter

  • Pulse Output Woltman Magnetic Driven Flow Meter
